Prefix/Suffix not inline with autocomplete field

Changes are made on on 11.x (our main development branch) first, and are then back ported as needed according to our policies.

The 100% width is also causing the issue in #3471683

I'm able to reproduce the issue in Drupal core 11.x . Steps followed:-

1. Created a new text field and entity reference field with limit 2 in the content type 'Article'
2. Created a custom module
3. Added 'field_prefix' and 'field_suffix' for both the newly created fields.
4. For text field, prefix and suffix are coming as inline but for entity reference it’s not.

Attached screenshots for reference

I tried the suggested solution i.e., changing width: auto; for the entity reference input element and it fixes the issue. Also, created an MR for the same.

Noticed that entity reference field without limit doesn’t have 100% width. So making the above changes, both type of entity reference fields will have same width. I'm not sure if that is an issue here.

Have not reviewed.

MR has build issues.

One file was missing in the commit. I have added that and now the build issue is fixed. Kindly review.

Seems like a straight enough fix.

This is changing the UI so tagging. That got me looking for screenshots. The latest before and after screenshots should be available from the issue summary, in the "User interface changes" to help reviewers. Fortunately, there are only a few comments here so I found that in #9. They look correct but why is there a screenshot of 'tags', https://www.drupal.org/files/issues/2024-09-05/3471459-entity-reference-... → ?

The proposed resolution questions why the value is "100%" and then says that removing it or changing it to 'auto' works. The implemented solution uses 'auto' but there is no discussion of why that option was chosen, nor is there any investigation in to why it is 100%.

This seems like a good thing to have a test for, to prevent regressions.

There is one observation :- the issue mentioned in the ticket occurs when Autocomplete widget is used in the form display whether the field is limited or unlimited. If Autocomplete (Tags style) widget is used, then this issue doesn’t occur.

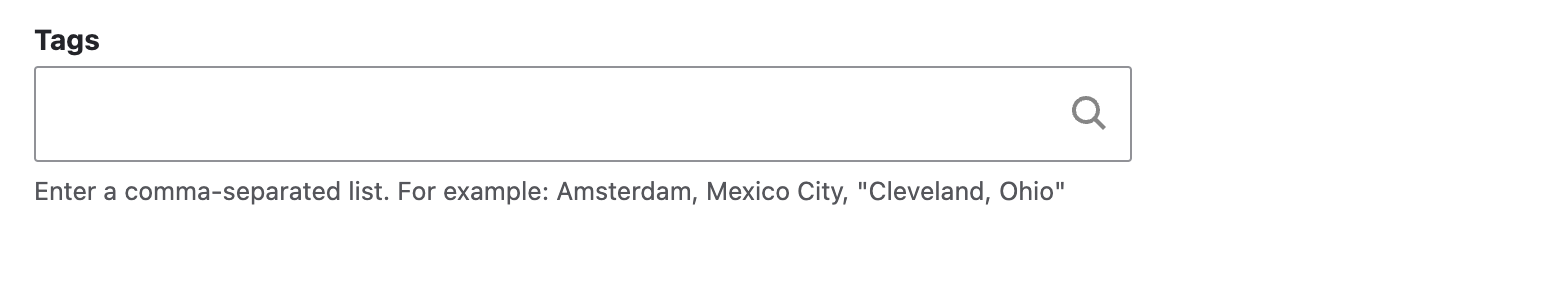

The screenshot of 'tags' was added just to show how an entity reference field with unlimited value + Autocomplete (Tags style) widget looks like in the form. As you can see in the screenshot, the width of that field is not set to 100%. When Autocomplete widget is used, the field appear as a table and width: 100% was set to the input elements and I think it was done so that it will cover the entire row of the table. Attaching a screen recording of entity reference field without prefix/suffix and toggling width:100%.

I'm not sure if we can remove width completely here. Better to write tests.

Updated IS with before and after screenshots.

The comment in #14 sounds like we have an unintended regression here.
Would it be better to set the parent element that contains the two prefix spans and the form element to display flex, setting flex-grow on the form element. That way it would be 100% if there's no prefix/suffix but otherwise they'd all be on the same line.

Thanks! @larowlan for the suggestions. I have implemented those changes except flex-grow since form element seems to be getting adjusted correctly even without flex-grow because of width:100%. Below are the changes done in this commit:-

1. Added display: flex to parent element that contains the two prefix/ suffix spans and the form element
2. Reverted width: 100% of form element.
3. Added spacing for prefix and suffix referring to the style used for suffix in form.css for screen width above 601px. As I'm not sure why that breakpoint was used in form.css, I added them without breakpoints in table.css

After the above changes this is how the fields looks like and I think it's is much better than previous implementation:

Updating IS screenshots as well.
Please review.

Great. That looks visually much better than my quick fix.

Believe feedback has been addressed on this one.

Pinging FE framework managers to confirm they're ok with this.

I checked a few spots with table cells that contain .form-item and I saw that in taxonomy term tables the "Status" items are no longer aligned with their header.

Hi @bnjmnm

the issue you mentioned i am unable to reproduce let me know if i am missing something.

step i followed --

1.go to taxonomy
2.click on any list term
3.add 3 terms used one of them to nest inside one term.

ahsannazir → changed the visibility of the branch 3471459-prefixsuffix-not-inline to hidden.

ahsannazir → changed the visibility of the branch 3471459-prefixsuffix-not-inline to active.

Removing justify-content: center fixes the alignment of Status items.

Hello,
Getting error while applying MP.
Attaching error screenshot-

Issue Fixed for me applied MR manually. RTBC+

@saurav-drupal-dev there's already a valid set of screenshots on the issue, additional ones aren't needed. Thanks.

Status regression appears to be addressed.

nod_ → closed merge request !9420

Committed bffe969 and pushed to 11.x. Thanks!

Automatically closed - issue fixed for 2 weeks with no activity.

The fix from this issue (commit 937a5478) introducing display: flex on the .form-item seems to be causing some layout regressions elsewhere—specifically with multi-value Link fields.
The details are here ✨ Multi-Link Fields styling applying flex class Active .
